Cambot test move



This is the first time I’ve had all 4 axis moving, so I had to run through a shot. This was a test move, just quickly swinging around some of my #sufferthewitch models on my stage and animating some lights. I didn’t get out the stop watch and plan the shot out for any storytelling aim, just wanted to see the #moco rig in action


Cambot update 9/17

I’m a bit stuck working on #Cambot. It should be able to perform programmed camera moves, and mechanically it works.  I figured now would be a good time to do a video, showing what’s going on. I’m particularly fond of the gearing on the pan tilt head. I’m just stuck on the electronics.

I’d been wiring the arduino directly to some easy drivers, but that wasn’t working out so well. The wires were a spaghetti mess, and I never got more than one axis moving at a time. Ended up letting the magic smoke out of like four steppers.

Three projects on the work bench today, all involving soldering! Setting up #arduino controlled lights for the spaceship model, repairs to my #3dprinter, and a major upgrade to #cambot @biolapse hooked me up with an awesome etched shield to hold motor drivers #art #moco #motioncontrol

A post shared by Brad Isdrab (@bradisdrab) on

I got this awesome board kit from Biolapse, so spent awhile soldering it up. I happened to have a bunch of smaller stepperdrivers from my  burnt out #3Dprinter ramps board and got it all together wired up to power and the nema17 stepper motors of the rig and looking good to me.

When I power it up the most I’m getting now is a slight vibration from one axis, not much torque, or rotation. The rest of the axis; nothing.

Lots of things I think it could be just not sure where to begin. I’m really reluctant to tear it all apart looking for the problem. That rearrange plugs, then test trial and error is exactly how I burned up so many drivers before. Just don’t know where to begin #troubleshootinghell

Bad soldering; there were a lot of points, and as much as I thought it went well, it’s always possible it didn’t flow/connect or something. But it seems unlikely I missed so much that all but one don’t work at all. I’d expect more mixed results.

Crossed wiring; the stepper motors might be plugged in the wrong order. I tried to be aware of which were the a/b coils of them but could easily have misread the diagram, and these are mismatched anyway so colors may not be reliable. It could even be a short in the leads to the motors.

The stepper drivers might need to be tuned, or could be bad. Only one of the stepper drivers I hooked up was new. The rest came from my old ramps board, which had been put out of commission when he heated bed power terminal burned up. It’s possible they don’t work now,  But the rest of the board had been alright at the time.


. . .

Just working on editing a video about my #cambot #motioncontrol rig. I feel like it’s close but keep running into little complications and expect to need advice soon so I thought I’d put together a full run down #stopmotion




Three projects on the work bench today, all involving soldering! Setting up #arduino controlled lights for the spaceship model, repairs to my #3dprinter, and a major upgrade to #cambot @biolapse hooked me up with an awesome etched shield to hold motor drivers #art #moco #motioncontrol

Three projects on the work bench today, all involving soldering! Setting up #arduino controlled lights for the spaceship model, repairs to my #3dprinter, and a major upgrade to #cambot @biolapse hooked me up with an awesome etched shield to hold motor drivers #art #moco #motioncontrol via Instagram http://ift.tt/2fODRGk

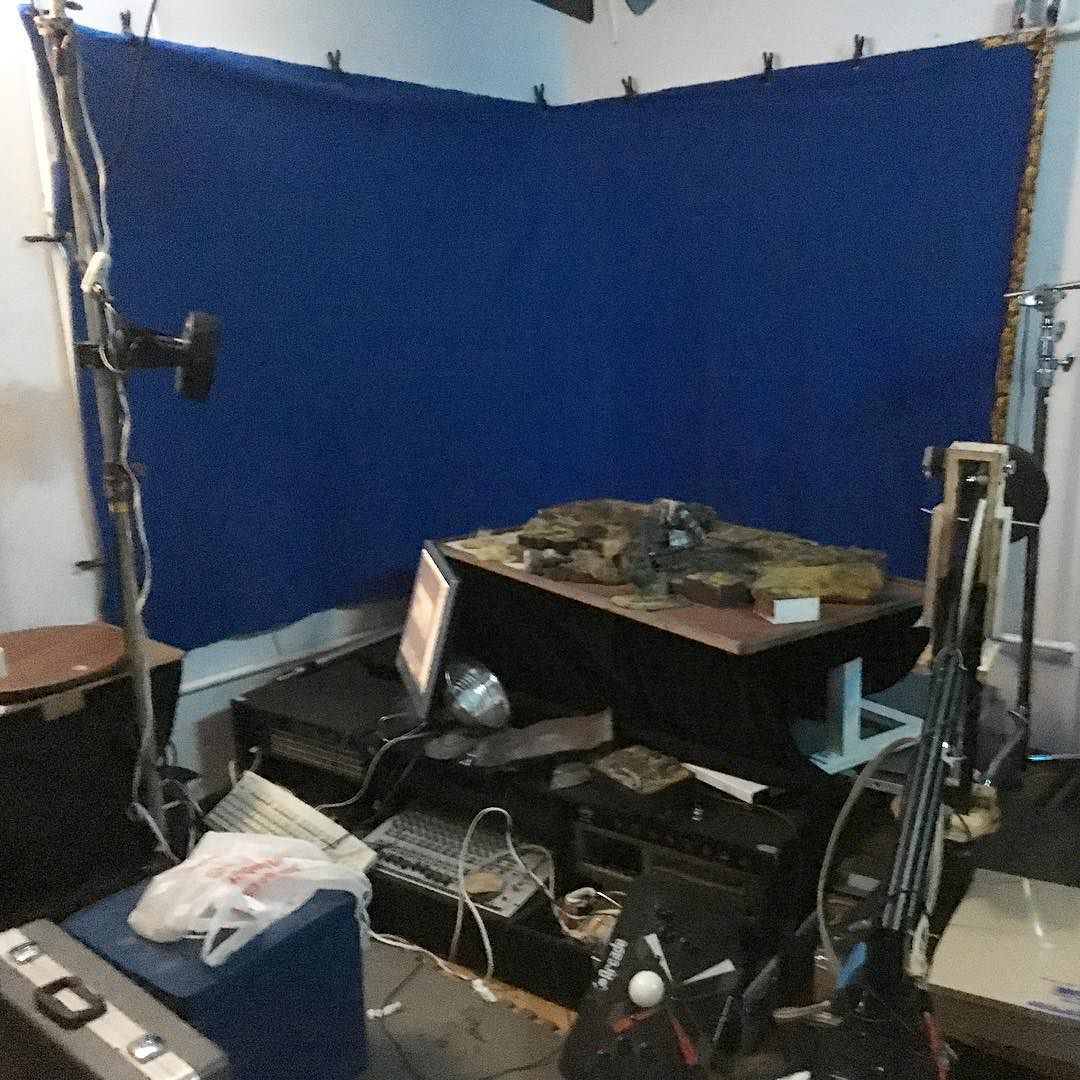

Made some new pvc frames and changed out the backdrop, now I’ve got a seamless blue behind the stage #stopmotion #art #motioncontrol #cambot

Made some new pvc frames and changed out the backdrop, now I’ve got a seamless blue behind the stage #stopmotion #art #motioncontrol #cambot via Instagram http://ift.tt/2qmw8z3

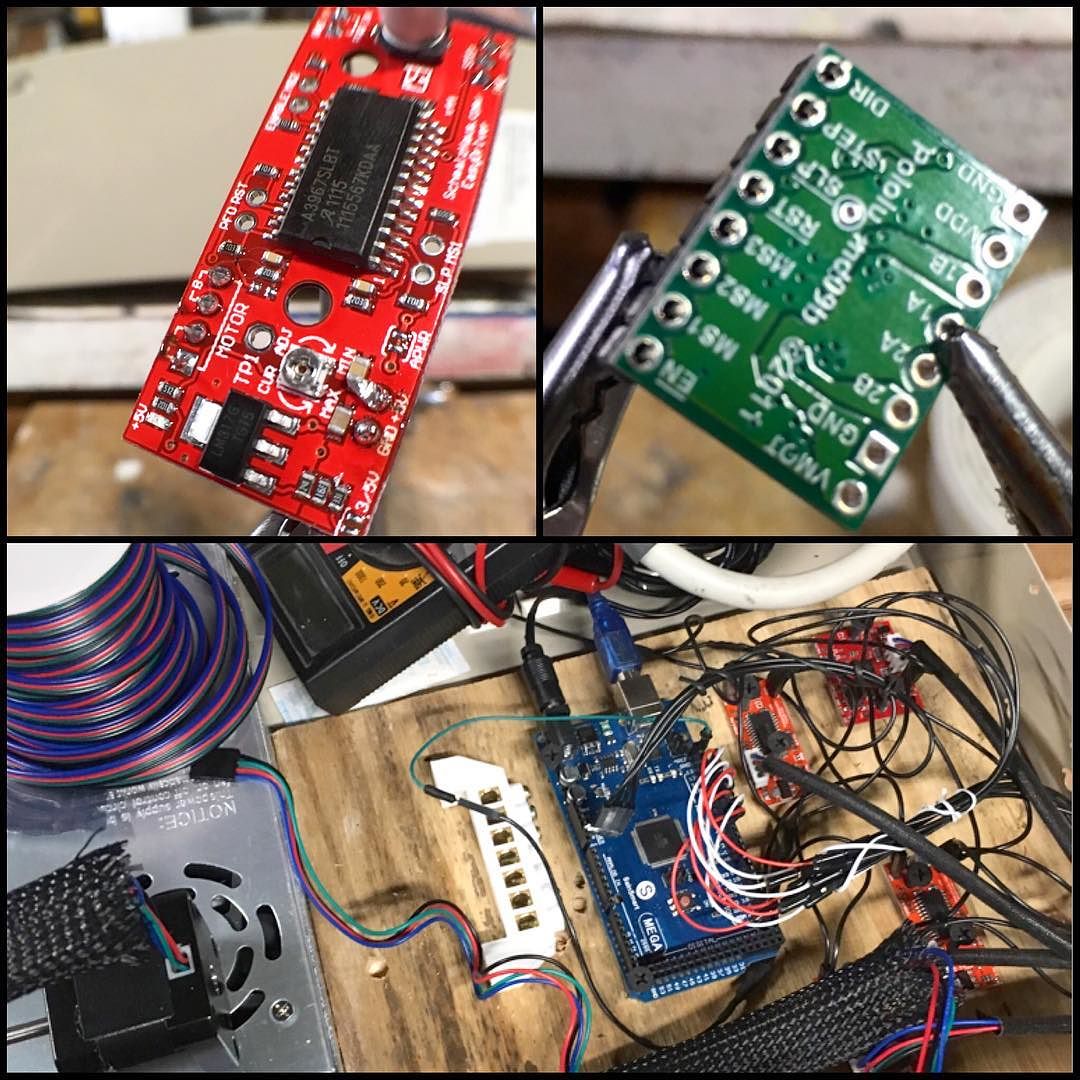

Taking the advice of a super genius coworker I delved back into the guts of #cambot with my smallest soldering iron to check connections and clean up this mess of spaghetti. It took hours but I think my #motioncontrol rig is close, the motors now move in both directions! it might have been badly tuned #easydriver but now it seems like the tilt motor is having some torque/slipping issues #arduino #dragonframe #art

Taking the advice of a super genius coworker I delved back into the guts of #cambot with my smallest soldering iron to check connections and clean up this mess of spaghetti. It took hours but I think my #motioncontrol rig is close, the motors now move in both directions! it might have been badly tuned #easydriver but now it seems like the tilt motor is having some torque/slipping issues #arduino #dragonframe #art via Instagram http://ift.tt/2qkFjEB

Did some more wiring on the pan and tilt #motioncontrol rig, checked the vga line for shorts and confirmed there was no short. One of the motors only travels in one direction and the other is underpowered, so the problem must be the stepper drivers, maybe they aren’t tuned right or a loose connection there #art #camera #cambot #arduino

Did some more wiring on the pan and tilt #motioncontrol rig, checked the vga line for shorts and confirmed there was no short. One of the motors only travels in one direction and the other is underpowered, so the problem must be the stepper drivers, maybe they aren’t tuned right or a loose connection there #art #camera #cambot #arduino via Instagram http://ift.tt/2omderi
